SURMAN METALS is a family-owned business based in Adelaide, South Australia. We are committed to providing quality service. We offer technical expertise, experience, and efficiency in both lead times and prices, no matter whether your order is big or small.
Aluminium • Bronze • Copper • Cast Iron • Brass • Stainless Steel • Specialty Steel
Aluminium
| 6061 | High strength, good machining, good anodising, structural grade, weldable |
| 5083 | Good welding, high strength |
| 2011 | Good machining grade |
| 7075 | Aircraft grade, high strength |
| Flat Bars | 10 x 3mm to 160 x 25mm 6060, 6061 |
| Rectangle Bar | 40 x 16mm to 177.8 x 152.4mm 6060, 6061 |
| Round Bar | 6.35mm Ø to 518mm Ø 6061 2011, 7075 & other grades available upon request |
| Tube | Round, square and rectangular tubes available Sizes available upon request |
| Channels, angles & extrusions | Sizes available upon request |
| Plate | |
| 5083 | 6 to 100mm thickness |
| 6061 | 6.35 to 310mm thickness |
| 7075 | 6.35 to 203mm thickness |
| Sheet | 0.6 to 6mm thickness 5005, 5083, 6061 & more |
| More grades & sizes available upon request | |
Bronze
| LG2 | Leaded gun metal, general purpose bearing bronze |
| PB1 | Phosphor bronze, heavy duty gears, high strength applications |
| ALB | Aluminium bronze, high strength, impact resistant & marine applications |
| NIAB | Nickle aluminium bronze, aerospace, marine, oil & gas industry applications |
| Castings | Available in any size or shape |
| A large range of alloys are available | |
| Flat Bar | A range of flat bars are available in PB1 & LG2 |
| Solid | 12.7mm Ø to 304mm Ø |
| Hollow | 25.4mm OD x 12.7mm ID to 304mm OD x 254mm ID |
| Sintered Bronze Bushes & Finished Bushes | |
| More grades & sizes available upon request | |
Copper
| 110 Alloy | High conductivity |
| 147 Alloy | EDM copper, machining alloy |
| Class 2 Industrial | Spot welding, high conductivity |
| Copper alloys | Tungsten copper, berylium copper, class 3 & 4 |
| Rounds | 3.18mm Ø to 101.6mm Ø |
| Flats | 12.7 x 3.18mm to 152.4 x 25.4mm |
| Tube* | 3.18 x 0.89mm to 101 x 2mm |
| Sheet | 0.5mm to 6mm thickness Sheet size 1800 x 900mm We sell in quarter sheet increments 450 x 900mm |
| * Castings can come in any size, shape or alloy | |
Cast Iron
| We carry one of the largest ranges of cast iron in Australia with all the hard to find larger sizes available | |
| Grey Iron | Sprockets, gears, pulleys & moulds, pistons, valve guides, piston rings & liners |
| Ductile Iron | Resistance to corrosion & shock pump bodies & wheel bearings |
| Round Bar | 25mm Ø to 550mm Ø |
| Square Bar | 25 x 25mm SQ to 510 x 510mm SQ |
| Flat Bar | 55 x 30mm to 650 x 300mm |

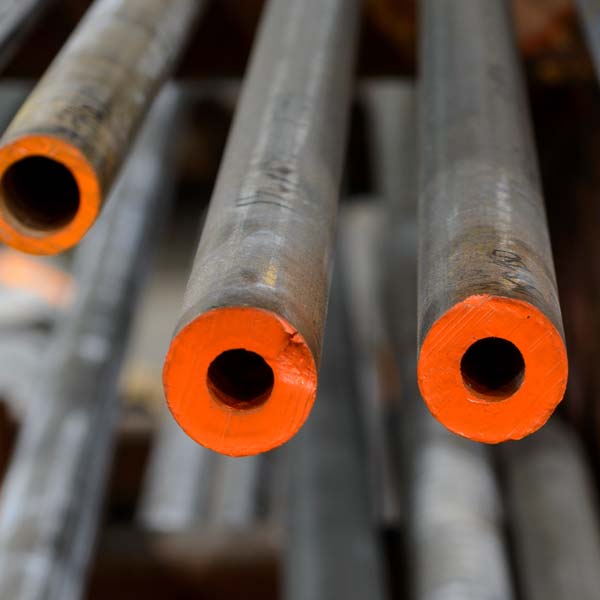

| Hollow & Castings | Both can be sourced with short turn arounds |
Brass
| Round Bar | 3.18 Ø to 240mm Ø |
| Hex Bar | 4.76mm AF to 63.5mm AF |
| Flat Bar | 6.35 x 3.18mm to 152.4 x 50.8mm |
| Hollow Bar | 14.29mm OD x 11.11mm ID to 88.9mm OD x 76.2mm ID |
| Tube | 4.76 x 0.91mm to 76.1 x 1.6mm |
| Sheet | 0.5 to 6mm thickness Standard sheet size 1800 x 900 We sell in quarter sheet increments 450 x 900mm |
Stainless Steel
| 303 | Machining |
| 304 | General, machining & food grade |
| 316 | Marine Grade, high salt corrosion resistance |
| Round Bar | 3.18mm Ø to 304mm Ø |
| Square Bar | 6 x 6mm to 50 x 50mm SQ |
| Flat Bar | 12 x 3mm to 150 x 12mm |
| Sheet | 0.55 to 3mm thickness Standard sheet size 1220 x 2440mm We sell in quarter sheet increments 610 x 1220mm Can cut to size with our CNC guillotines |
| Plate | 4mm to 100mm thickness |
| Pipe | 8NB SCH10 to 250NB SCH10 |
| Tube | 4.76 x 0.89mm to 152.4 x 1.6mm |
| Fittings | Nipples, plugs, reducers, flanges, unions, tube bends, sockets & tee fittings |
| More grades & sizes available upon request | |

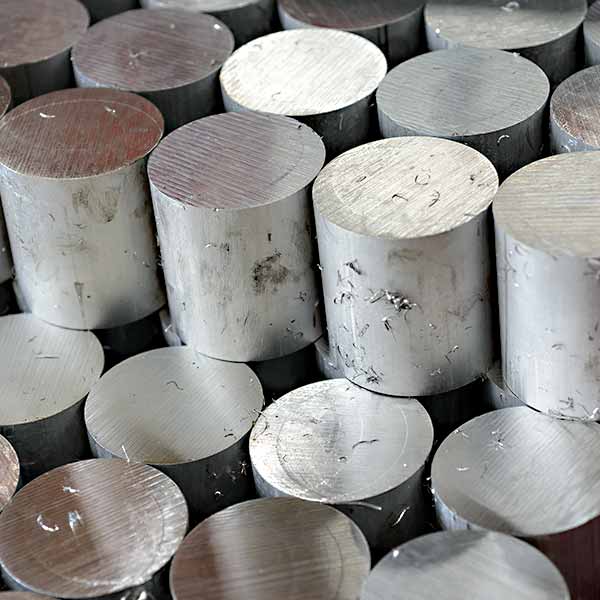

Specialty Steel
| We are committed to providing the industry with the materials required. We are able to stock any specialty steel for continual work | |
| We are able to source specialty steels in all grades | |
| • 1020 | • 1045 |
| • S1214 | • 4140 |
| • Monel | • Tool Steel |
| • Titanium Grade 2 & 5 | • Chrome Moly 4130 |
| More grades of specialty steels available upon request | |
Specialty Metals • Expertise • Service • Efficiency

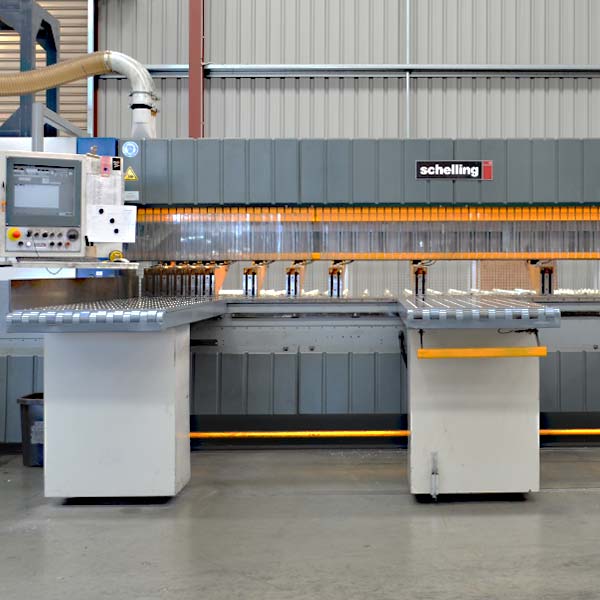

CNC ALUMINIUM PLATE CUTTING
- Can achieve tight tolerances -0.00/ + 0.3mm
- Cutting thicknesses from 3mm to 155mm thick
- Strip lengths up to 4m
- Fast & accurate multiple cutting

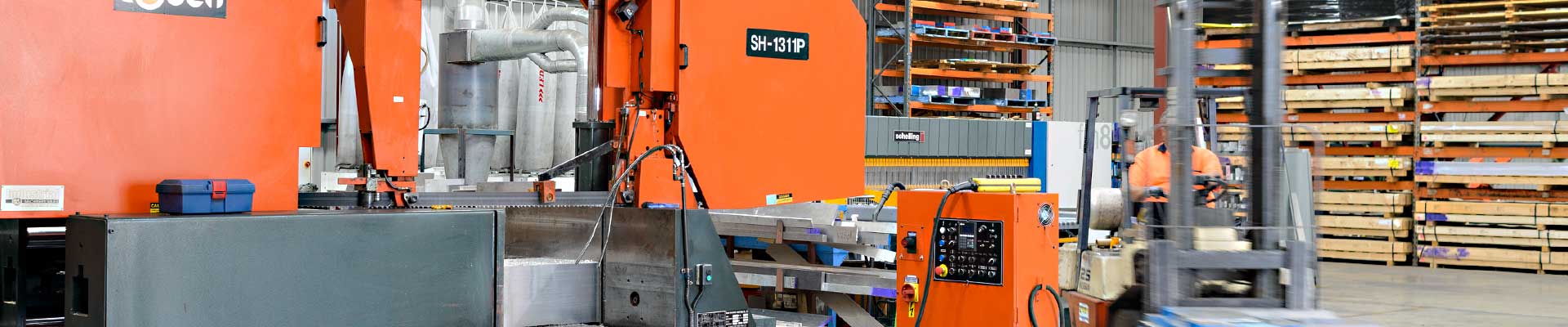

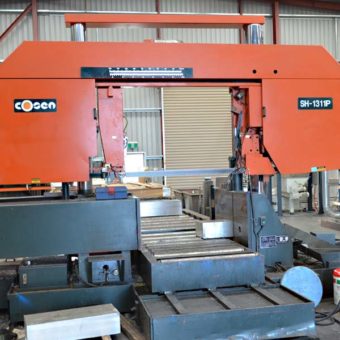

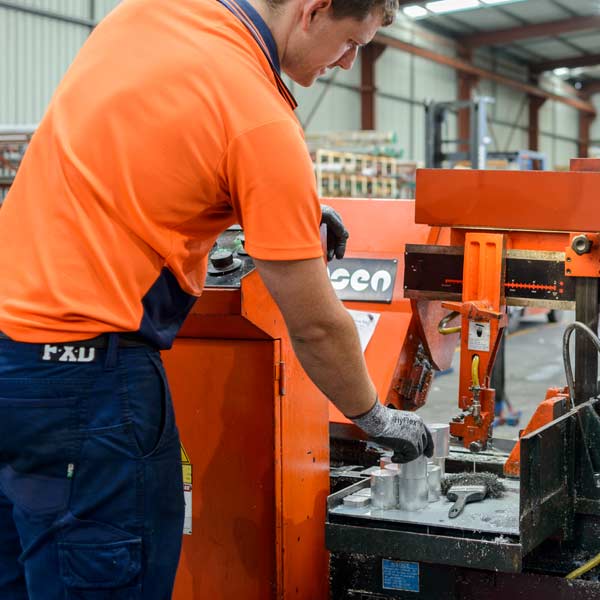

BAND SAW CUTTING SERVICES
- Boasting a large range of band saws
- Capable of cutting large range of materials
- Cutting blocks up to 1300mm wide x 1100mm high
- Repetition cutting from 12.7Ø to 1100mm Ø
- Fast & accurate multiple cutting

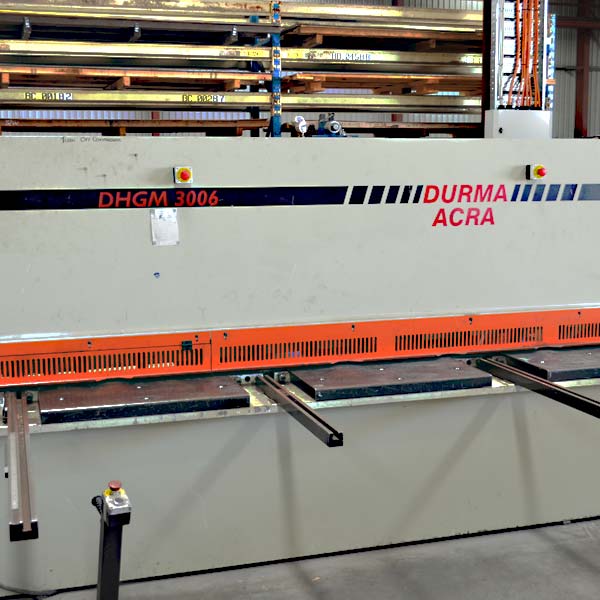

CNC GUILLOTINE SERVICES
- Can achieve tight tolerances -0.00/ + 0.3mm
- Guillotining thicknesses from 0.5mm to 10mm
- Materials including: aluminium, brass, copper, mild steel, stainless steel
- Strip lengths up to 3m
- Fast & accurate multiple cutting
MATERIAL SOURCING
- Have a long history of sourcing and supplying specialty metals
- 5O years of contacts makes us a leader in the field
- Competitive pricing on orders large & small
- Can also source internationally for specialised goods
LOGISTIC SERVICES
We are located in Adelaide, which is a perfect central location to ship our goods around Australia.
With key freight lines running through to all major cities including:
- Perth
- Darwin
- Brisbane
- Sydney
- Melbourne
We are happy to arrange freight or use a freighter of your choice.
Logistics : Perth – Darwin – Brisbane – Sydney – Melbourne
Aluminium • Bronze • Copper • Cast Iron • Stainless Steel • Specialty Steel • Brass
FAMILY OWNED BUSINESS WITH OVER 50 YEARS EXPERIENCE!

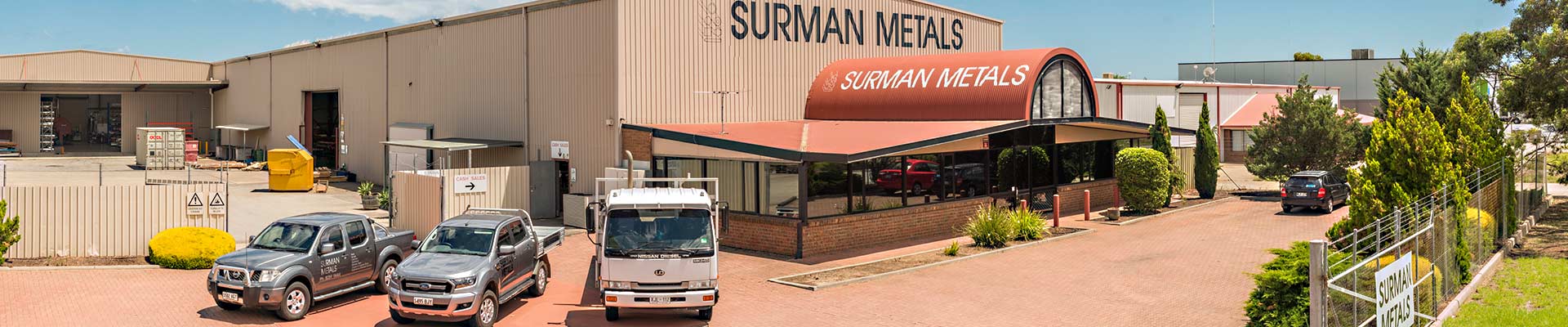

SURMAN METALS is a family-owned business based in Adelaide, South Australia. It was originally established over 60 years ago as a foundry based on Leader Street, Thebarton, mainly manufacturing cast iron and non-ferrous castings. The business then diversified in 1989 into steel and specialty metal distribution and ceased foundry operations. We are now located at 5 Greenfields Drive Green Fields, just off Salisbury Highway.

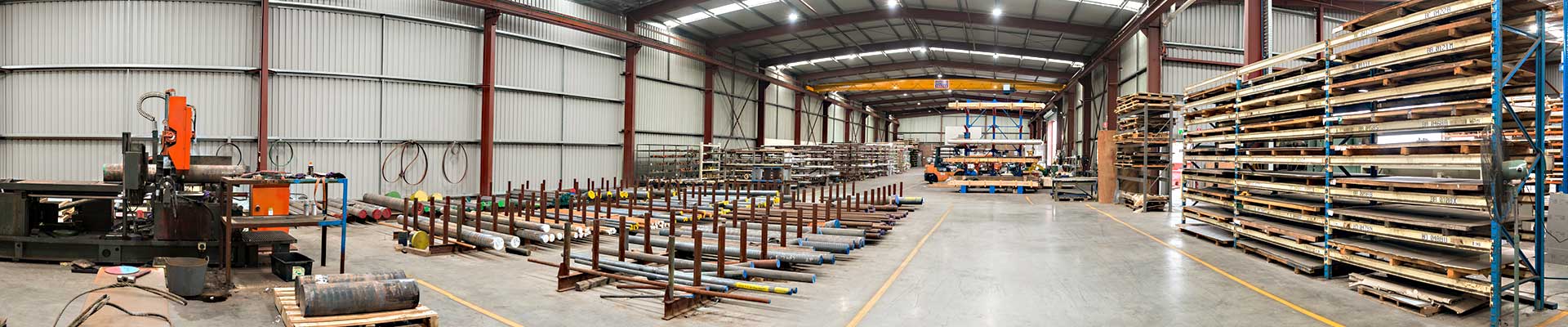

We stock a large range of materials including aluminium, brass, bronze, copper, cast iron, stainless steels and specialty steels. Specialty metals can be sourced with quick turnaround times. All materials are produced to the applicable Australian and overseas standards. Mill test reports and full traceability available on most materials.
We are committed to providing quality service. We offer technical expertise, experience, and efficiency in both lead times and prices, no matter whether your order is big or small.
